I had someone ask about the Vertical Stabilizers for this X-plane. The original plane I just randomly cut them from balsa wood at what I thought looked OK. I measured them on my original plane and they are roughly 5 inches tall, 3.5 inches wide at the base and 2 inches wide at the top. They are swept back a little bit of an angle. I just drew a rough sketch and saved to the PDF below.
Benoit Filion, the PDF posted above is the only one I have for this old plane. The plane was originally built 11 years ago from these templates. The only other information I have is what is show in the videos.
@Benoit Filion below are Beta Templates for th FF-Jupiter, FF-Sabre Warrior and FF-Recon.. Just please note these are just basic templates and do not have all the information like the official finished plans.
Here is a free Template for the forward swept wing plane. This plane was made form EPP Foam using the basic templates in the PDF file below. It is a very basic plan. You will need to cut the foam parts out and then sand and shape them to be rounded and aerodynamic.
I had someone ask about the Vertical Stabilizers for this X-plane. The original plane I just randomly cut them from balsa wood at what I thought looked OK. I measured them on my original plane and they are roughly 5 inches tall, 3.5 inches wide at the base and 2 inches wide at the top. They are swept back a little bit of an angle. I just drew a rough sketch and saved to the PDF below.
Meus Amigos

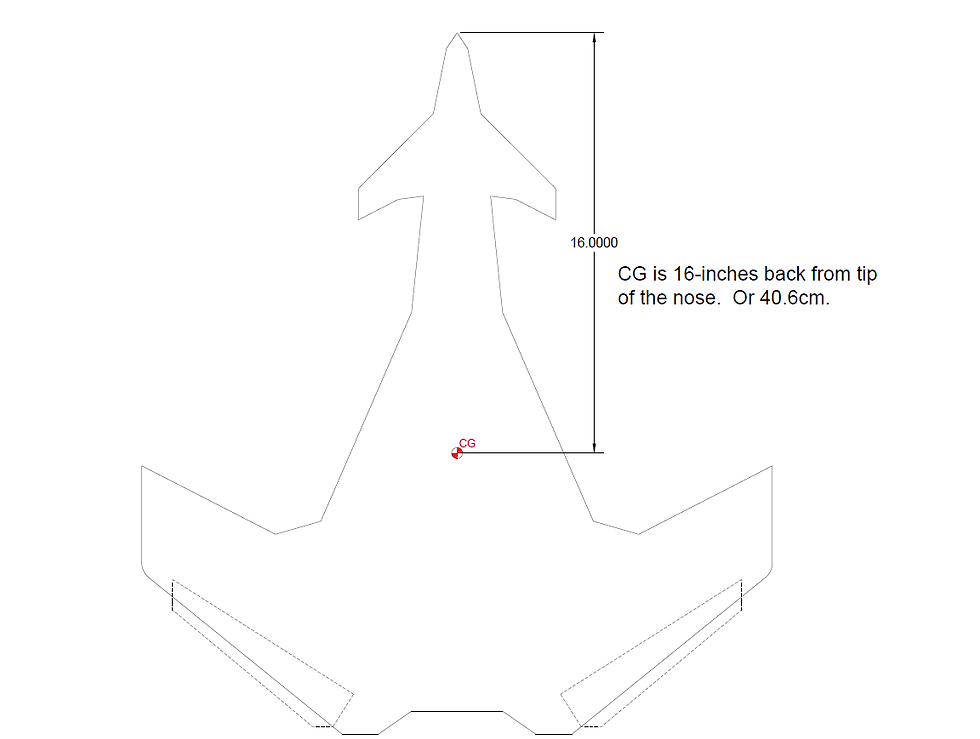

Quero construir o modelo (experimental forward) mas CG, não está no desenho,me podem ajudar? OBRIGADO
Do you have any other beta template that we can play with?
Plano experimental de asa de varredura para frente, QUE MOTOR DEVO USAR?
Here is a free Template for the forward swept wing plane. This plane was made form EPP Foam using the basic templates in the PDF file below. It is a very basic plan. You will need to cut the foam parts out and then sand and shape them to be rounded and aerodynamic.
